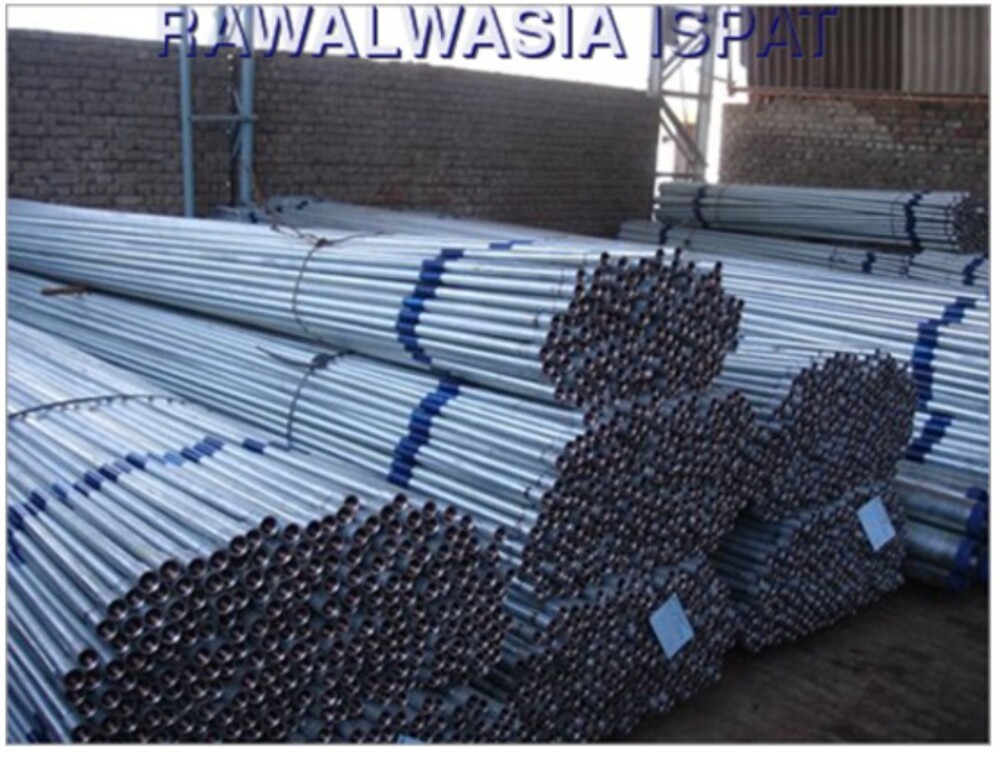

Galvanized Steel Tubes

Get a Price/Quote

MOQ : 10 Metric Tons

Galvanized Steel Tubes Specification

End Protector
Plastic Caps

Product Type
Galvanized Steel Tubes

Application
Construction, Structural, Fencing, Water & Gas Supply, Industrial, Automotive

Surface Finish
Galvanized (Zinc Coated)

Tolerance
0.5 mm

Connection
Welded or Threaded

Material
Carbon Steel

Section Shape
Round

Standard
ASTM A53, IS 1239, BS 1387, EN 10255

Technique
ERW (Electric Resistance Welded)

Surface Treatment
Hot Dipped Galvanized

Outer Diameter
21.3 mm 114.3 mm

Thickness
1.8 mm 6.0 mm

Size
Customizable

Length
6 m or customized

Galvanized Steel Tubes Trade Information

Minimum Order Quantity
10 Metric Tons

Payment Terms
Letter of Credit at Sight (Sight L/C), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque

Delivery Time
20 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
Standard Packing available.

Main Export Market(s)
Eastern Europe, Middle East, Western Europe, Asia, Africa

Main Domestic Market
Rajasthan, Maharashtra, Gujarat

Certifications
ISO 9001:2000

About Galvanized Steel Tubes

Galvanized Steel Tubes

Being an ISO 9001:2000 certified company, we are engrossed in providing our customers with the best quality Galvanized Steel Tubes. These tubes are manufactured at our highly advanced manufacturing unit using latest techniques and quality approved galvanized steel that is procured from trusted vendors of the industry. The offered tubes are used for safe conveying of several gases as well as liquids. Along with this, we offer these Galvanized Steel Tubes at rock bottom prices to our prestigious clients.

Features:

Sturdy construction
Fine finish
Ruggedness
Resistant to corrosion

SPECIFICATIONS OF BLACK AND GALVANIZED STEEL TUBES (EN : 10255)

Nominal (NB)	Specified outside diameter	Type	Outside Diameter		Wall Thickness	Mass per unit length of bare tube
Nominal (NB)	Specified outside diameter	Type	Minimum	Maximum	Wall Thickness	Plain End	Screwed & socketed
Mm/inches	mm		mm	mm	mm	Kg/m	Kg/m
15(1/2")	21.30	L1 L2 L M H	21.00 21.00 21.00 21.00 21.00	21.70 21.40 21.70 21.80 21.80	2.30 2.00 2.30 2.60 3.20	1.080 0.947 1.080 1.210 1.440	1.090 0.956 1.090 1.220 1.450
20(3/4")	26.90	L1 L2 L M H	26.40 26.40 27.10 26.50 26.50	27.10 26.90 26.40 27.30 27.30	2.30 2.30 2.60 3.20	1.390 1.380 1.400 1.560 1.870	1.400 1.390 1.410 1.570 1.880
25(1")	33.70	L1 L2 L M H	33.20 33.20 33.20 33.30 33.30	34.00 33.80 34.00 34.20 34.20	2.90 2.60 2.90 3.20 4.00	2.200 1.980 2.200 2.410 2.930	2.220 2.000 2.220 2.430 2.950
32(1-1/2")	42.40	L1 L2 L M H	41.90 41.90 41.90 42.00 42.00	42.70 42.50 42.70 42.90 42.90	2.90 2.60 2.90 3.20 4.00	2.820 2.540 2.820 3.100 3.790	2.850 2.570 2.850 3.130 3.820
40(1-1/2")	48.30	L1 L2 L M H	47.80 47.80 47.80 47.90 47.90	48.60 48.40 48.60 48.80 48.80	2.90 2.90 2.90 3.20 4.00	3.240 3.230 3.250 3.560 4.370	3.280 3.270 3.290 3.600 4.410
50(2")	60.30	L1 L2 L M H	59.60 59.60 59.60 59.70 59.70	60.70 60.20 60.70 60.80 60.80	3.20 2.90 3.20 3.60 4.50	4.490 4.080 4.510 5.030 6.190	4.560 4.150 4.580 5.100 6.260
65(2-1/2")	76.10	L1 L2 L M H	75.20 75.20 75.20 75.30 75.30	76.30 76.00 76.00 76.60 76.60	3.20 3.20 3.20 3.60 4.50	5.730 5.710 5.750 6.420 7.930	5.850 5.830 5.870 6.540 8.050
80(3")	88.90	L1 L2 L M H	87.90 87.90 87.90 88.00 88.00	89.40 88.70 88.70 89.50 89.50	3.60 3.20 3.20 4.00 5.00	7.550 6.720 6.760 8.360 10.300	7.720 6.890 6.930 8.530 10.500
100(4")	114.30	L1 L2 L M H	113.00 113.00 113.00 133.10 113.10	114.90 113.90 113.90 115.00 115.00	4.00 3.60 3.60 4.50 5.40	10.800 9.750 9.830 12.200 14.500	11.100 10.000 10.100 12.500 14.800
125(5")	139.70	L M H	138.50 138.50 138.50	140.80 140.80 140.80	4.50 5.00 5.40	15.000 16.600 17.900	15.500 17.100 18.400
150(6")	165.10	L M H	163.90 163.90 163.90	166.50 166.50 166.50	4.50 5.00 5.40	17.800 19.800 21.300	18.400 20.400 21.900

Precision Crafted for Strength and Longevity

Built with strict adherence to globally recognized standards, these galvanized steel tubes undergo thorough hot-dip galvanization, resulting in superior rust protection and longevity. Their robust construction using carbon steel and electric resistance welding ensures stable performance in demanding environments such as construction and industrial projects.

Versatile Applications Across Sectors

With a variety of shapes and dimensions, our tubes are well-suited for structural frameworks, fencing, water and gas pipelines, as well as automotive and other industrial requirements. Their adaptability and high mechanical integrity make them a reliable material choice for both heavy-duty and routine installations.

FAQs of Galvanized Steel Tubes:

Q: How are the galvanized steel tubes manufactured?

A: These tubes are produced using carbon steel and the electric resistance welding (ERW) technique. After forming to the desired shape (round, square, or rectangular), they are hot-dip galvanized, infusing a zinc coating of 40300 g/m which significantly enhances corrosion resistance.

Q: What are the main benefits of using galvanized steel tubes in construction projects?

A: Galvanized steel tubes offer high strength, corrosion resistance, and durability, making them ideal for construction. The robust zinc coating protects against rust, while adherence to standards ensures reliability and safety in structural applications.

Q: When should I use welded versus threaded connections for these tubes?

A: Welded connections are preferable in high-strength or permanent installations, such as load-bearing structural frameworks. Threaded connections are commonly used for plumbing or gas supply, allowing for easier assembly, maintenance, or adjustment.

Q: Where can galvanized steel tubes be applied?

A: These tubes are suitable for construction, structural frameworks, fencing, water and gas transportation, industrial systems, and automotive components. Their versatility and tough exterior allow them to stand up to a broad range of industrial uses.

Q: What sizes and thicknesses are available for these galvanized tubes?

A: Our tubes are available in outer diameters ranging from 21.3 mm to 114.3 mm, with wall thicknesses between 1.8 mm and 6.0 mm. Lengths are typically 6 meters but can be customized to suit project requirements.

Q: How are the tubes packaged and protected during shipment?

A: Tubes are bundled and securely wrapped with steel strips for stability during transit. Additionally, plastic end caps are fitted to protect the tube ends from damage and contamination.
